SBL Solar Bollard Lights

SBL fully sealed, self-contained, marine grade aluminum solar bollard lights offer exceptional performance, durability and impact resistance in the most extreme locations where continuous, full power lighting is required from dusk until dawn, 365 days a year.

SBL solar bollards are both IP68 certified (can be submerged up to 10' in water) and IK10 certified (will withstand serious vandalism and impact by flying or floating debris).

All SBL bollards are custom configured to suit specific geographical locations and site conditions, ensuring the correct power model configuration is supplied for each project.

Plate mount, direct bury, pole mount and wall mount options are available, with or without shade caps.

Call 406-551-7955 for pricing or email archasol@archatrak.com.

Features

No similar product can out-perform the SBL2 Solar LED bollard for quality, durability, low maintenance and continuous performance, especially in locations where cyclones, hurricanes, typhoons, tidal surges, tsunamis and regular flooding are prevalent.

The SBL2 Solar LED Bollards have proven long-term resistance to the most extreme conditions in more than 35 countries. These robust luminaries survive submersion by ocean waves, impact from golf ball-sized hail, constant exposure to the desert sun, covering by snow and attack by vandals.

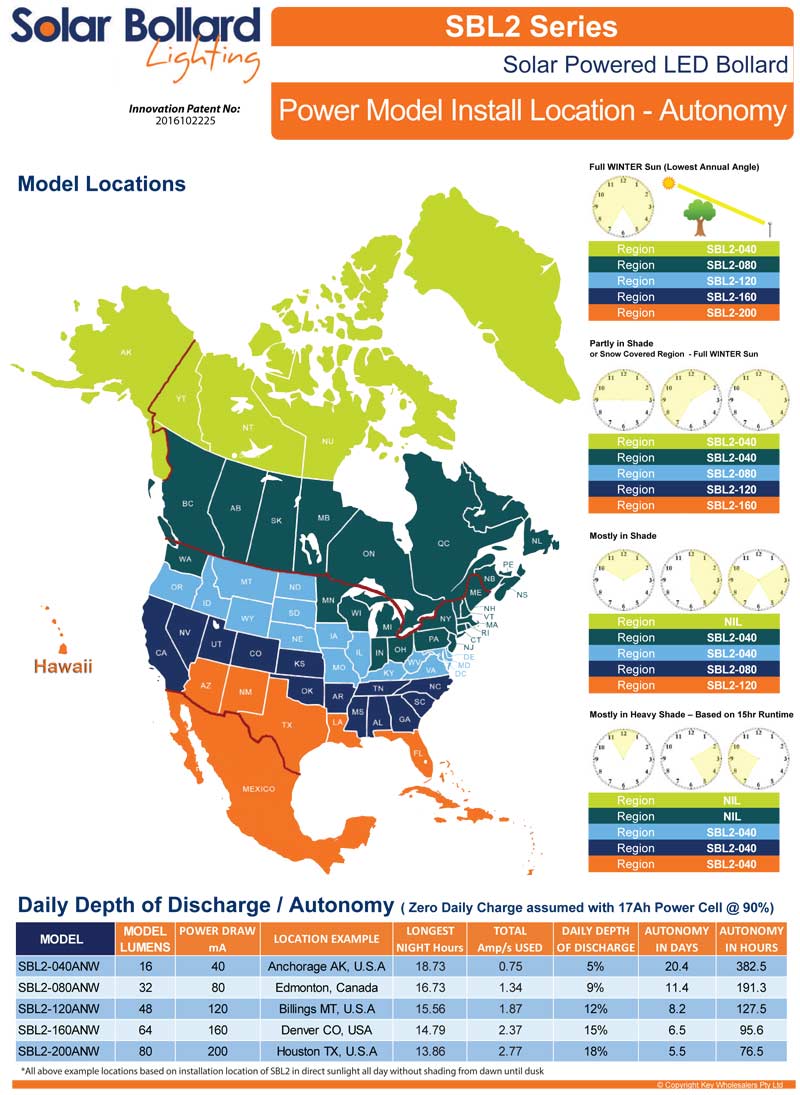

All SBL solar bollards are custom configured, taking into account the geographical location, the sunlight profile during the winter solstice, the longest night hours and required autonomy in days, and whether the bollards will be subject to shading at any time during the day.

Using this solstice snapshot, we account for the longest winter nights, the shortest hours of daylight, and the low-tracking sun when shadows are longest. This ensures the correct power model is supplied to suit the actual project, not a ‘one-size-fits-all’ assumption that is made with off-the-shelf supplied bollards.

With this customized approach, solar bollards can be supplied (in some locations) which will still operate in full shade or with snow coverage where only ambient irradiation is available to recharge.

Download datasheet

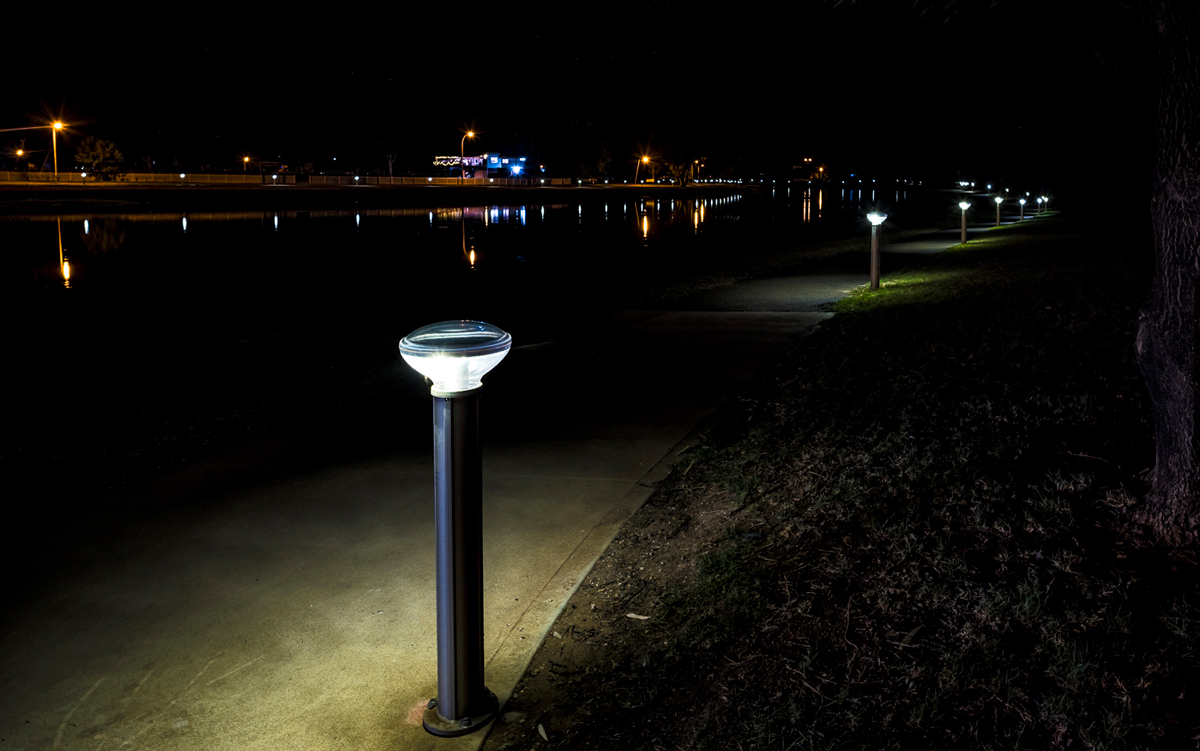

Dusk to dawn lighting
Dusk to dawn lighting

LED lights run at full power from dusk until dawn since the correct power model is always supplied for the specific installation location. Lights are not dimmed after a specified number of hours nor use proximity sensors which could be triggered randomly causing over-cycling the battery.

Extended light output
Extended light output

SBL solar bollard lighting can operate for more than 5 days without sunlight depending on LED power rating. Power rating is set for the specific installation location and conditions.

Bird resistant dome top
Bird resistant dome top

With no flat surfaces or edges for birds to grip on, SBL bollards eliminate the need for bird spikes and ensures debris or dust cannot easily settle and reduce the charging capacity of PV panels.

Impact resistant polycarbonate
Impact resistant polycarbonate

Dome top design prevents any direct impact on the solar module due to distance between the dome and the PV cells. A shock absorbing adhesive attaches the solar module to the internal reflector, also reducing the risk of shattering.

IP68 Certified - submersible to 10' depth
IP68 Certified - submersible to 10' depth

Capable of submersion in locations where cyclones, hurricanes, typhoons, tidal surges, tsunamis, and regular flooding is likely.

IK10 Certified - equates to impact of 5kg mass dropped from 400mm
IK10 Certified - equates to impact of 5kg mass dropped from 400mm

Can withstand serious vandalism, impact by flying objects or floating debris in waterways or the sea.

Specific models for shaded locations
Specific models for shaded locations

Specific power models of SBL solar bollard lighting are available for locations that are fully shaded throughout the day with only ambient irradiation available to recharge.

Multiple configurations
Multiple configurations

Direct bury, plate mount, wall mounted, post mounted, with or without caps for shielding.

Options

  • Direct bury or plate mounting

    7" wide aluminum plate or direct bury up to 17" deep.

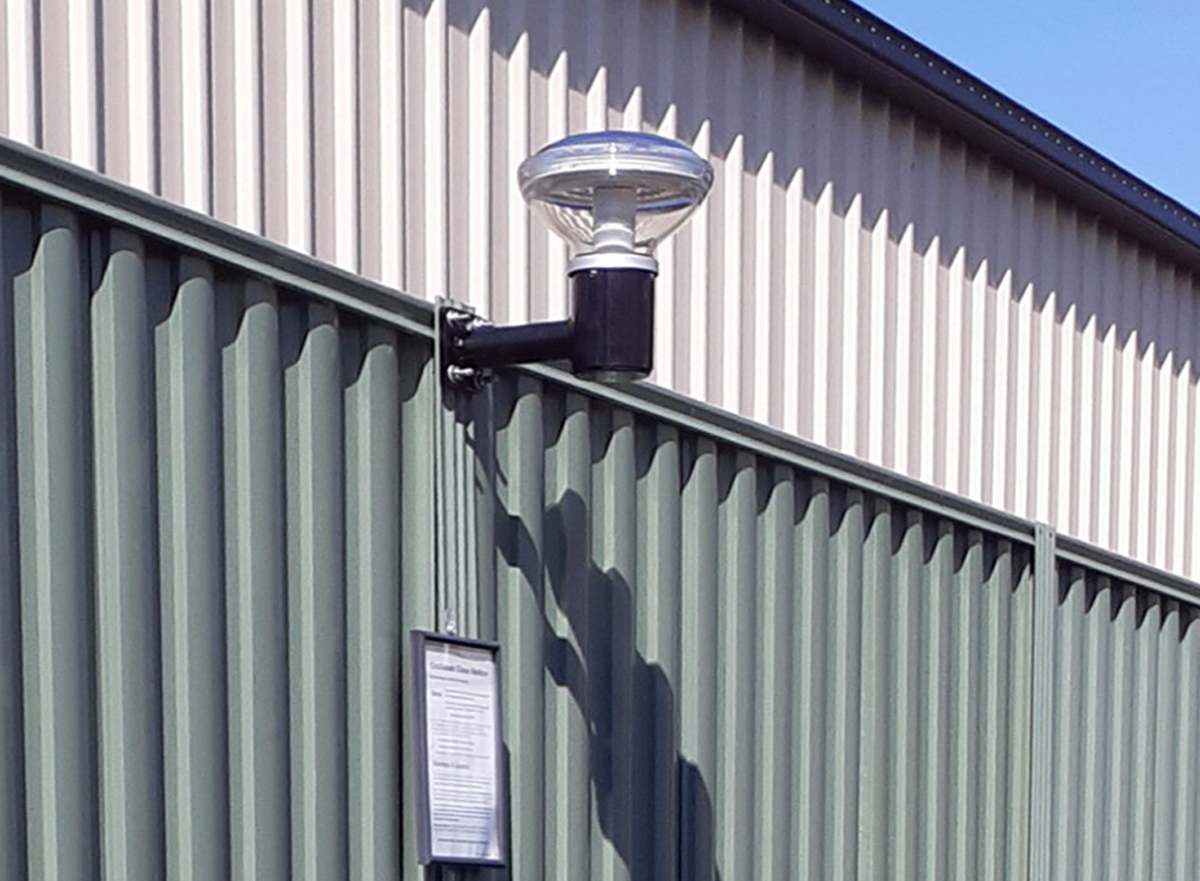

  • Wall mount (with or without caps)

    12" high max. shielded solar bollards - mount on any vertical wall face.

  • Pole mounting

    Tall commercial bollard lights - 4 1/2" dia. pole with heights from 39" to 138".

  • Pole finish options

    Clear anodized, ebony anodized or custom powder coated colors.

  • Wildlife friendly LED color (red spectrum)

    LED wavelength spectrum of 605nm-620nm – you can customize your luminaries and minimize adverse impacts on your local wildlife as required with soft, red light waves.

  • Symmetrical or Asymmetrical light output

    180° or 360°

  • LED Color option

    4300K +/- (Natural white) or 3000K (Warm white).

Options

Materials

Materials
Dome: LEXAN SLX Polycarbonate (Highest UV stabilized PC available). Won't yellow or become brittle in less than 10 years.
Housing: LEXAN 203R Polycarbonate (UV stabilized)
Internal: STAREX ASA (Acrylonitrile styrene acrylate)
Poles: Aluminum 6106-T6 marine grade (25um anodized or powder coated)
Pole colors: Clear anodized (std), black anodized or powder coated available on special order
Certification: IK10 Certified - withstands impact from debris and vandalism IP68 Certified - submersible to 3m depth
Operating temp.: -22°F ~ +140°F ambient
Warranty: 10 years

LED & Solar Module

LED  & Solar Module
Voltage: 3.2V
LED chips: 8 x 5mm Piranha LED super bright
Light distribution: Asymmetrical or symmetrical
Color: 4300K (Natural white) or 3000K (Warm white)
Runtime: Dusk until dawn on full power
Solar module : 5w mono-crystalline
Module design life : 10 years
Battery type: 3.2V 17Ah cylindrical LiFePo4
Battery cycles: 3700 (expected minimum)
Battery design life: 10+ years

Model Selection

Model Selection
Power Model: 040 - 40mA
080 - 80mA
120 - 120mA
160 - 160mA
200 - 200mA
240 - 240mS
280 - 280mA
LED: ANW - Asymmetrical 4300K
SNW - Symmetrical 4300K
AWW - Asymmetrical 3000K
SWW - Symmetrical 3000K
Mount Code: -130 5.1"
-142 5.6"
- 840 33"
-1140 44.9"
-1340 53"
-1790 70.4"
-1840 79"
- 2440 96.5"
Mount Type: WM - Wall Mount
DBA - Direct Bury
BPA - Base Plate
Pole Finish: A - Anodised - Clear (Silver)
AB - Anodised - Ebony (Black)
PC - Black Satin (Default Color)

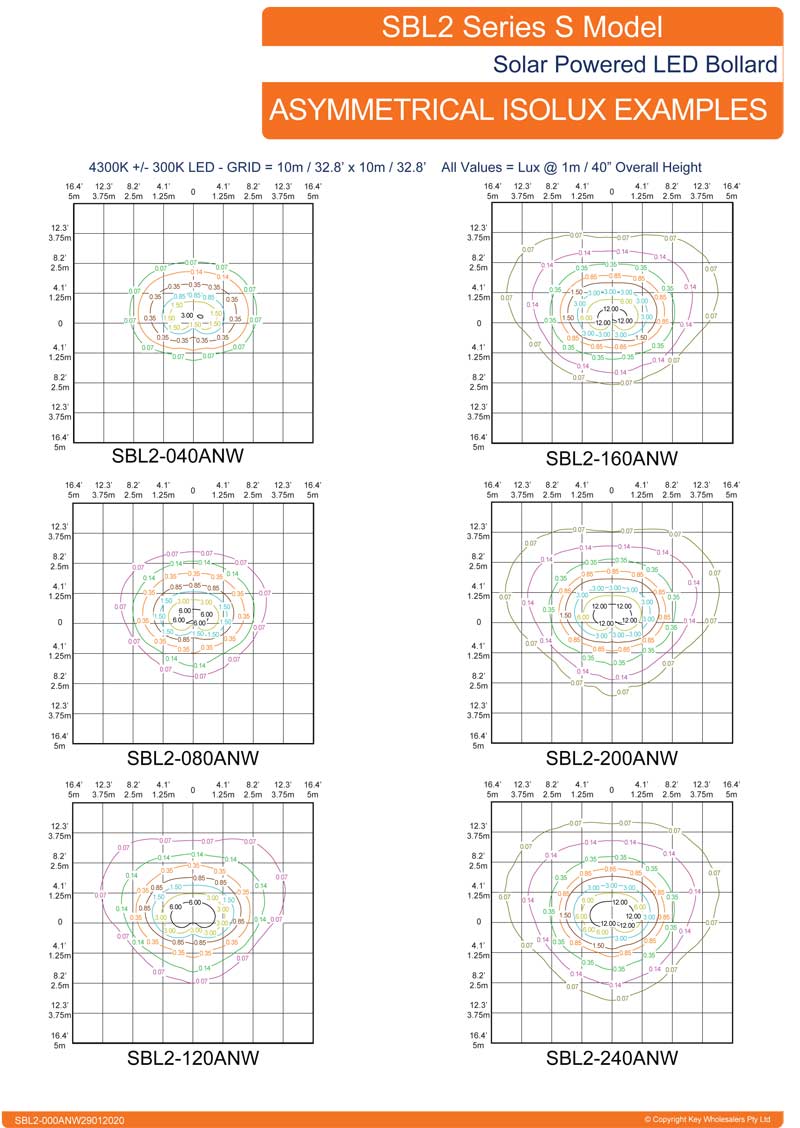

Isolux Examples

Isolux Examples
:

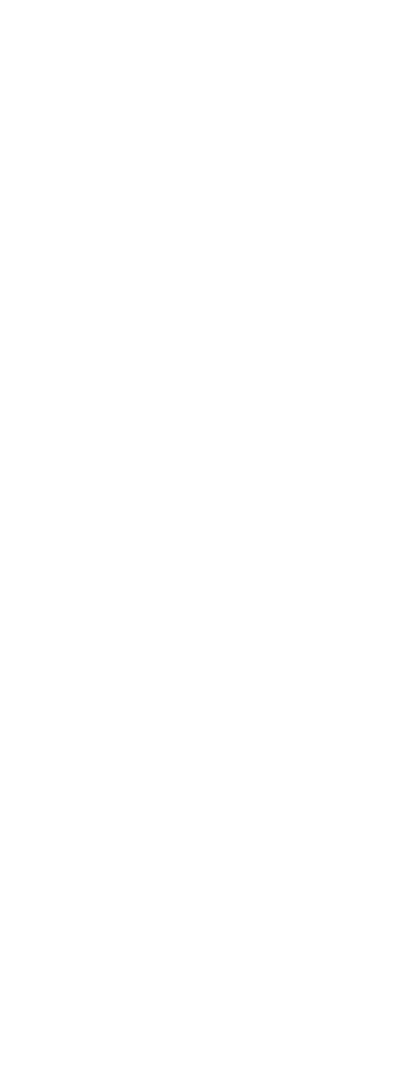

Configurations

SBL2
SBL2 with cap
SBL2 wall mount
SBL2 wall mount with cap
SBL2 2 light array
SBL2 2 light array with caps
SBL2 3 light array
SBL2 3 light array with caps
SBL2 4 light array
SBL2 4 light array with caps
SBL2
SBL2 with cap
SBL2 wall mount
SBL2 wall mount with cap
SBL2 2 light array
SBL2 2 light array with caps
SBL2 3 light array
SBL2 3 light array with caps
SBL2 4 light array
SBL2 4 light array with caps
